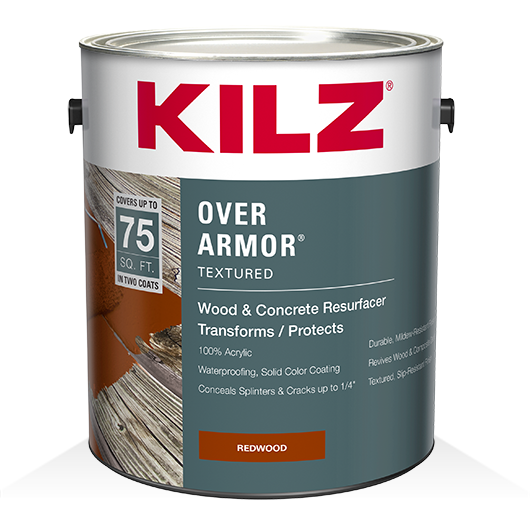

KILZ OVER ARMOR® Textured Coating is a lightly-textured, solid color coating designed to bridge cracks, hide imperfections and give a uniform look to old, weathered wood.

KILZ OVER ARMOR Textured Coating can also be used over cracked and weathered concrete. Available in a variety of “wood stain” and “concrete” colors. Ideal for properly prepared weathered or cracked horizontal wood and composite surfaces such as decks, porches and boat docks, as well as concrete surfaces like pool decks, patios and sidewalks. For residential applications only. Do not use on drivable surfaces such as garage floors and driveways.

Available in Gallons & Fives

Where To Buy

Please check availability before visiting your local retailer

  • Ratings & Reviews
  • Preparation, Application & Clean-Up
  • Warranty / Warnings
  • Product Specifications


The following steps and products are required.

  • For failing coatings or to remove loose wood fibers, use a product such as KILZ® Wood Stain & Finish Stripper followed by KILZ® Wood Cleaner & Brightener to neutralize the wood.

  • When KILZ Wood Stain & Finish Stripper is not needed, a product such as KILZ Wood Cleaner & Brightener MUST be used to properly prepare and clean existing or new wood surfaces.

  • After using either KILZ Wood Stain & Finish Stripper or KILZ Wood Cleaner & Brightener, rinse thoroughly with a garden hose or pressure washer.

  • When rinsing with a pressure washer, use the broadest spray pattern while keeping the nozzle at least 24" away from the surface. • Allow the area to dry at least 24 hours before coating. Lightly sand to remove remaining wood fibers/fuzz.


  • DO NOT DILUTE. Intermix multiple containers to ensure color uniformity. Stir product occasionally throughout application.

  • For best results, apply when air and surface temperatures are between 50-90°F. During application, avoid exposure of container to direct sunlight. Do not use if rain is expected within 24 hours. Avoid painting if humidity is expected to be greater than 80%.

  • For nail holes and cracks up to 6 mm (1/4"), completely fill in with KILZ OVER ARMOR Textured Coating using a nylon/ polyester brush and allow to dry prior to rolling. Deep nail holes and cracks may require additional filling.

  • For edges, corners and in between wood boards, apply using a nylon/polyester brush. Use pressure while rolling and apply a generous, even coat using a 1/2" nap roller. For a smoother texture, use a brush or thinner nap roller (i.e. 1/4").

  • For vertical wood application such as such as railings, use a nylon/polyester brush or roller and apply two thin coats at a spread rate of 400 sq. ft. per gallon.

  • Do not use with airless sprayer. Maintain a wet edge when applying.

  • A SECOND COAT MUST BE APPLIED for optimum performance, film uniformity, leveling and to cover cracks.

Dry Time

  • Wait 4-6 hours before recoating. Dries to touch in 4 hours. Wait 24-48 hours before light foot traffic. 72 hours for full cure. Additional dry time may be needed in cooler temperatures and higher humidity. Premature heavy traffic will cause coating failure.

Clean up & Disposal

  • Clean equipment and paint spatters with warm, soapy water. If spilled, contain material and remove with an inert absorbent. Dispose of contaminated absorbent, container and unused product in accordance with all current governmental regulations.

  • Do not dispose of this product down a drain. Please consider donating any unused product. For recycling or disposal information contact your local household refuse collection service.

Cautions / Limitations

  • Protect from freezing

  • Do not use without the addition of tinting colorants

  • Do not use if rain is expected within 24 hours


  • Avoid applying paint in direct sunlight or hot surfaces

  • Test product for color on a small hidden area before proceeding

  • Painted surfaces may become slippery when wet

  • Shelf life under normal conditions is 2 years (unopened containers)

  • Do not use on drivable surfaces such as garage doors and driveways.

  • Temperature Range: 50-90°F (10-32°C)

*Limited Warranty

Masterchem Industries LLC warrants to you, the original residential consumer purchaser, the performance of this product as described on this label for 20 years from the date of purchase. THIS WARRANTY IS NOT VALID WHEN THE PRODUCT IS NOT PROPERLY APPLIED TO A PROPERLY PREPARED, VERTICAL SURFACE OR CARED FOR IN ACCORDANCE WITH THE LABEL DIRECTIONS.  This warranty is not transferable. If this product is found not to perform as specified on the label during the warranty period, Masterchem Industries LLC will, at its option and upon presentation of proof-of-purchase (the original receipt), either furnish an equivalent amount of new product or refund the original purchase price of this product to you. This warranty excludes (1) labor and costs of labor for the application or removal of any product, and (2) any incidental or consequential damages, whether based on breach of express or implied warranty, negligence, strict liability or any other legal theory. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.  Note to residents of the State of New Jersey: The provisions of this warranty, including its limitations, are intended to apply to the fullest extent permitted by the laws of the State of New Jersey. For warranty service, call: 1-866-774-6371, or email: Masterchem Industries LLC reserves the right to inspect any and all application of the product prior to processing your claim made under this warranty.

General Information



If you scrape sand or remove old paint, you may release lead dust. LEAD IS TOXIC. EXPOSURE TO LEAD DUST CAN CAUSE SERIOUS ILLNESS, SUCH AS BRAIN DAMAGE, ESPECIALLY IN CHILDREN. PREGNANT WOMEN SHOULD ALSO AVOID EXPOSURE. Wear a NIOSH approved respirator tor to control lead exposure. Clean up carefully with a HEPA vacuum and a wet mop. Before you start, find out how to protect yourself and your family by contacting the National Lead Information Hotline at 1-800-424-LEAD or log on to

WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

Warning! Irritant!

HARMFUL IF SWALLOWED. CONTAINS: ETHYLENE GLYCOL. MAY CAUSE EYE, NOSE AND THROAT IRRITATION.AVOID CONTACT WITH SKIN AND EYES AND AVOID BREATHING OF VAPORS AND SPRAY MIST. WEAR EYE PROTECTION AND PROTECTIVE CLOTHING. USE ONLY WITH ADEQUATE VENTILATION. To avoid breathing vapors and spray mist, open windows and doors or use other means to ensure fresh air entry during application and drying. If you experience eye watering, headaches or dizziness, increase fresh air and use a properly fitted respirator (NIOSH approved for zorganic vapor with P Series particulate prefilter). Obtain professional advice before using. A dust mask does not provide protection against vapors. Avoid contact with eyes and skin. Wash thoroughly after handling. Close container after each use.

First Aid

  • If you experience difficulty in breathing, leave the area to obtain fresh air. If continued difficulty is experienced, get medical assistance immediately.
  • In case of eye contact, flush immediately with plenty of water for at least 15 minutes and get medical attention.
  • For skin, wash thoroughly with soap and water.
  • If swallowed, get medical attention immediately.


  • Base

    Deep Base

  • Int/Ext


  • Color

    Deep Base

  • Coverage Rate

    75 sq. ft. per gallon. 2 coats required

  • Coverage - Low

    75 sq. ft.

  • Mils Wet


  • Mils Dry


  • Coverage High


  • Mils Wet


  • Mils Dry


  • VOC

    50 g/L

  • Volume Solids


  • Weight Solids


  • Viscosity

    95 - 115 KU

  • Flashpoint
